Manfrotto 504X Fluid Video Head with 536 CF Single leg tripod

MFR# MVK504XCTALL
Out of Stock

  • Fluid video head with 4-step counterbalance system up to 14.3 lbs.
  • Maximum versatility thanks to flat base
  • Carbon Fiber single leg tripod for greater rigidity
  • 100mm half ball, compatible with a75mm half ball adapter.
  • Side lock plate attachment and two 3/8'' easy link connectors

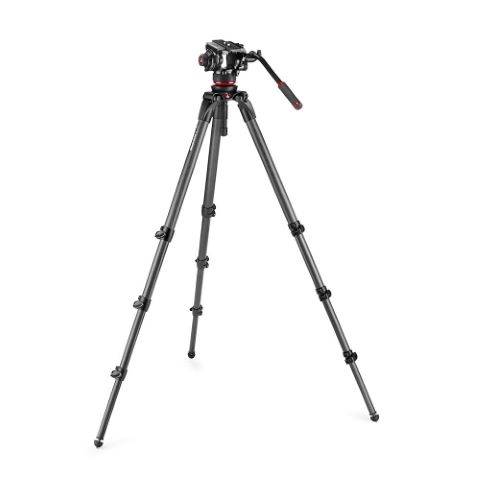

This video system includes the Manfrotto 504X Fluid Video Head and the 536 Single Leg Carbon Tripod.

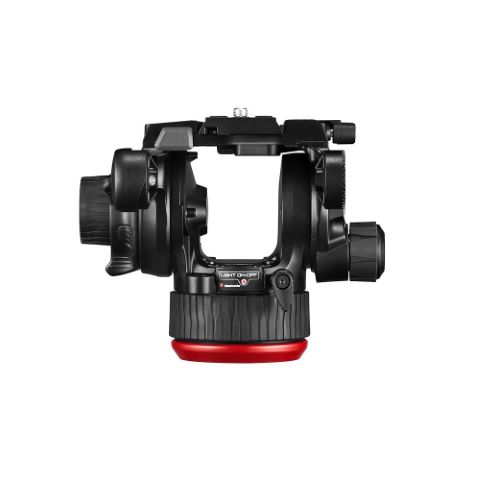

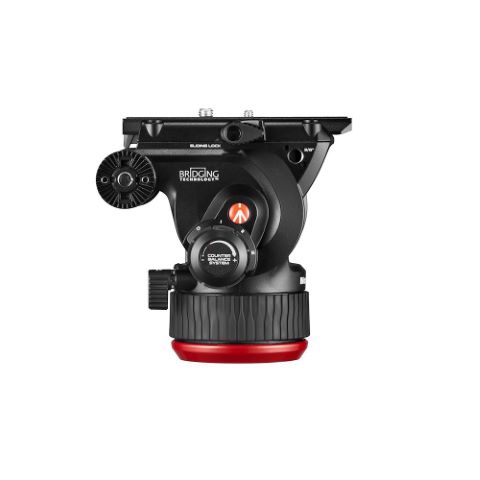

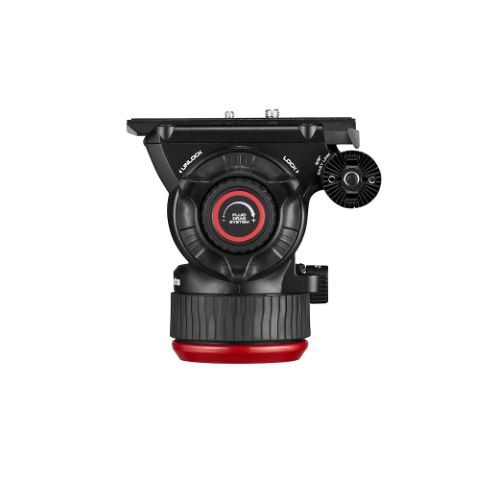

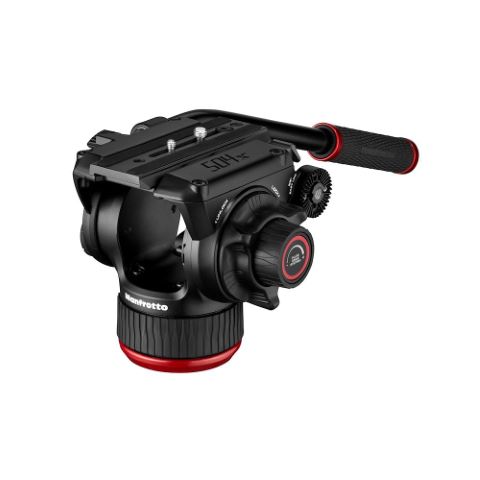

The Manfrotto 504X fluid video head with flat base features the new Manfrotto fluid technology which allows smoother operation and unrivalled stability in both pan and tilt movements. It presents a 4-step counterbalance system that can take loads of up to 14.3 lbs at 55 mm C.O.G.

The tripod head is made from a brand-new catching aluminium design and has a maximum payload of 26.4 lbs.

It is a compact and light head with a flat base (base diameter 75 mm), that lets you choose from a wide variety of different shooting options. It also features two 3/8” Easy Link connectors, equipped with an anti-rotation function that enables the fitting of external monitors or other accessories. A cap fits over the easy link, to avoid cutting during use. The sliding plate attachment and side-lock mechanism allows safe, quick and easy camera attachment.

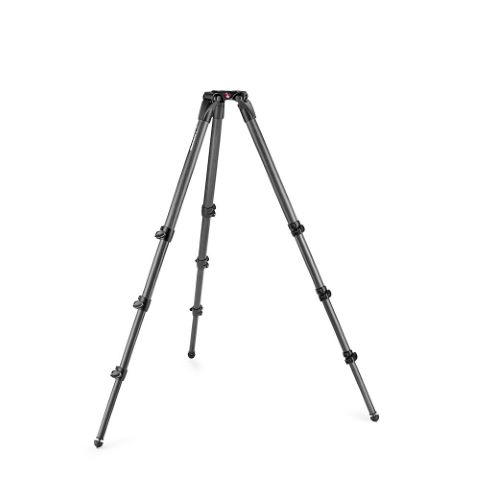

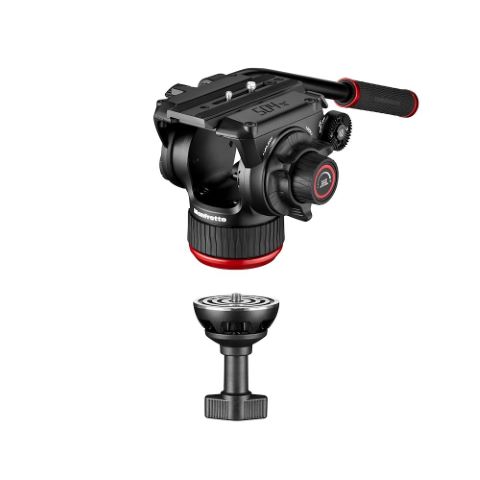

The 536 features an aluminum casting 100mm bowl and it comes with an aluminum adapter that converts the bowl into a 75mm, perfect in combination with the 504X head for fast levelling and precision. Thanks to its four section design, you can easily set up and disassemble in a flash, so you'll never waste time on a shoot.

The tripod enables you to select the exact angle that suits you thanks to the leg angle selector. Together with the head you can move smoothly up and down, from 40.5cm to 217.5cm.

Supplied with its own padded carrying bag.

  • Weight: 12.87 lbs
  • Top Attachment: 1/4″ screw, 3/8″ screw
  • Ball Flat: 0
  • Safety Payload Weight: 26.46 lbs
  • Counterbalance System: Variable Steps
  • Powered by (batteries): Lithium
  • Base Diameter: 2.95 in
  • Counterbalance Weight: 4.85- 9.7- 14.33 lbs
  • Bubble Spirit Level (No.): 1
  • Center of gravity: 2.17 in
  • Carrying Bag Included: yes
  • Center Column: no center column
  • Closed Length: 34.25 in
  • Color: Black
  • Easy Link: Yes (with antirotation)
  • Front Tilt: -70° / +90°
  • Head Type: Video/Fluid Head
  • Leg Type: Single
  • Leg Angles: 23°, 50°, 70°
  • Leg Lock Type: Flip Lock
  • Leg Sections: 4
  • Material: Aluminum, Carbon Fiber
  • Maximum Height: 85.83 in
  • Maximum Working Temperature: 140 °F
  • Min Height: 16.54 in
  • Minimum Working Temperature: -22 °F
  • Pan Bar Included: Yes
  • Pan Drag: continuously adjustable from 0 to max level
  • Panoramic Rotation: 360 °
  • Plate Type: 504PLONGR-1
  • Quick Release: Yes
  • Tilt Drag: continuously adjustable from 0 to max level
