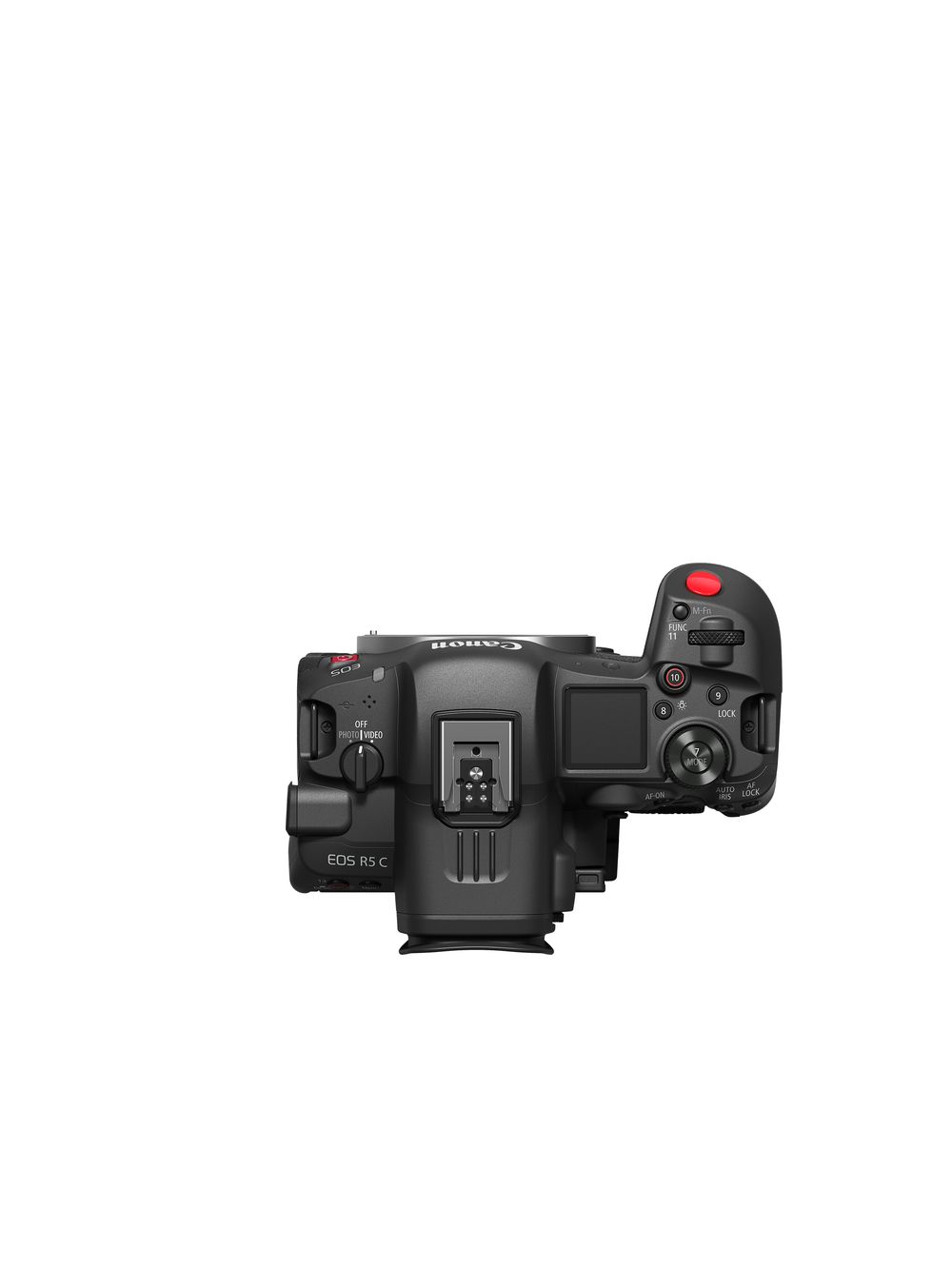

Canon EOS R5 C Mirrorless Digital Camera with 8K/60 RAW Video Recording

MFR# 5077C002
Out of Stock
Hunt's Guarantee
$4,799.00
Quantity

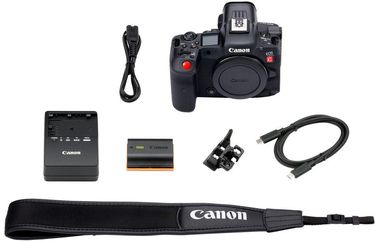

Included Items:

EOS R5c Digital Camera, Battery Pack (LP-E6NH), Battery Charger (LC-E6), Shoulder Strap (SS-1200), Interface Cable (IFC-100U), Cable Protector, Camera Cover (R-F-5)


  • Supports 8K/60P Internal RAW or Cinema RAW Light Recording
  • Supports HDMI 8K RAW Output to Compatible Recorders, 8K HDR Recording (PQ/HLG)
  • Internal Cooling Fan Enables Non-stop 8K/60P Recording
  • Expanded Interface for Professional Needs
  • Carries on the Ergonomic EOS Design
  • Full-featured 13 Assignable Buttons
  • 8K Sensor and DIGIC X Processor with 4K and 2K Oversampling
  • Simultaneously Records Different Formats
  • XF-AVC and MP4 Codecs for 10-bit 4:2:2 Video
  • Up to 4K 120P Slow and Fast Motion Recording Mode in 4:2:2 10-bit
  • Simultaneous Audio Recording Enabled with HFR
  • Wide Variety of Recording Formats
  • Canon Log 3 Expands Expressive Possibilities
  • Enhanced Image Stabilization
  • Canon VR with RF5.2mm F2.8 L Dual Fisheye Lens Support and Workflow
  • Dual Pixel CMOS AF with iTR AF X
  • High-Speed Continuous Shooting of up to 12 fps with Mechanical Shutter
  • High Speed Up to 20 fps Electronic (Silent) Shutter
  • Subject Detection & Tracking AF system even at 20fps
  • AF Area Flexibility

Compact and lightweight, the EOS R5 C is a true hybrid camera, boasting many of the video formats and features from the Cinema EOS lineup as well as many of the still capabilities of the EOS R5 camera in a beautifully designed body. The EOS R5 C is a complete package that offers filmmakers, multimedia journalists, and advanced amateurs a cost-effective 8K, 4K, and FHD video camera to help unlock their creative potential.

Canon's 45 Megapixel full-frame, CMOS imaging sensor is at the heart of the EOS R5 C camera's superb image quality, which also leads the way for impressive 8K/60P RAW cinematic video shooting. Focus and speed are paramount in the EOS R5 C camera, providing impressive continuous capture at speeds of up to 20 frames per second*, and with Dual Pixel CMOS AF II capability, to track split second movements of even the most elusive subjects. With 1,053 Automatic AF zones, it is easy to photograph people with the use of Eye, Face and Head Detection AF, or intuitively track the whole body, face or eye of cats, dogs, or birds with Animal Detection AF**. For those with the need for speed, Canon has also included vehicle subject detection to assist with accurate tracking of cars and motorcycles.

Shares Common Features & Technology with the EOS R5 Camera

Canon's 45 Megapixel full-frame, CMOS imaging sensor is at the heart of the EOS R5 C camera's superb image quality, which also leads the way for impressive 8K/60P RAW cinematic video shooting.

Focus and speed are paramount in the EOS R5 C camera, providing impressive still-image continuous capture at speeds of up to 20 frames per second, and with Dual Pixel CMOS AF II capability, to track split second movements of even the most elusive subjects. With 1,053 Automatic AF zones, it is easy to photograph people with the use of Eye, Face and Head Detection AF, or intuitively track the whole body, face or eye of cats, dogs, or birds with Animal Detection AF. For those with the need for speed, Canon has also included still-image vehicle subject detection to assist with accurate tracking of cars and motorcycles. Connectivity like 5GHz and 2.4GHz Wi-Fi® and Bluetooth®, is also included for the transfer of still images .

Video control for the dedicated video professional

As soon as the EOS R5 C's main switch is moved to the “video” position, the familiar Cinema EOS menu system and interface take over. Expected high-level video features such as waveform monitors, video codec options, and extensive audio control become available — greatly expanding the EOS R5 C's video potential for the experienced camera operator or video content creator. During “photo” operation, menus are nearly the same as on the EOS R5 camera.

Supports 8K/60P Internal RAW Recording

The 8K sensor and DIGIC X processor produce high-quality video at up to 8K/60P. Use of the Cinema RAW Light format with its high-efficiency mode enables internal card recording without an external recorder.

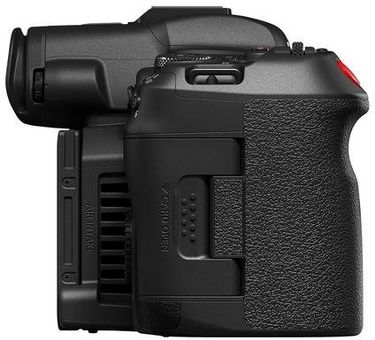

Internal Cooling Fan Enables Non-stop 8K/60P Recording

The EOS R5 C camera features a cooling fan built into the body, forcing out the heat from inside. This enables continuous and virtually limitless shooting of high-definition 8K/60P video without interruption .

Expanded Interface for Professional Needs

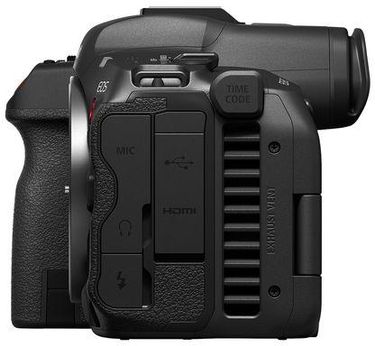

The EOS R5 C camera provides a Timecode input/output terminal for easy synchronization when shooting with multiple cameras and other interfaces. A cable protector is also included as standard to prevent cable disconnection or damage to the terminal if strong force is applied when connecting interface or HDMI cables.

Canon's Multi-function shoe with digital audio interface supports the optional TASCAM CA-XLR2d-C professional audio XLR microphone adapter for up to 4-channel audio. This optional accessory adds two full-sized XLR terminals with phantom power and shotgun mic mount, enabling digital 4-channel and 24-bit audio recording to meet professional video production needs.

Carries on the Ergonomic EOS Design

The EOS R5 C camera's body design is incredibly compact and lightweight. When paired with a Canon RF lens (or EF lens using the Mount Adapter EF-EOS R), it offers outstanding performance that fits easily and comfortably in your hand, making handheld shooting a breeze whether shooting video or still images. Its Electronic Viewfinder is optically extended, for eye-level viewing similar to the conventional EOS R5 camera, and it uses the same ergonomic grip design.

Full-featured 13 Assignable Buttons

The EOS R5 C camera is designed with operational flexibility in mind, conforming to each individual professional workflow, including 13 marked, assignable buttons that allow for user-friendly customized operation.

8K Sensor and DIGIC X Processor

The EOS R5 C camera is the first Cinema EOS System Camera to provide internal 8K (8192x4320) 60P RAW recording. 8K video offers outstanding definition and realism with 16 times the resolution of full HD video, enabling unprecedented capabilities in video expression and highly flexible workflows, such as 4K cropping from 8K footage. The EOS R5 C camera can also record 8K video in the highly versatile MP4 format. Lighter, smaller proxy video files can also be recorded while shooting 8K. This makes for an efficient workflow during editing, previewing, and other tasks.

Internal Cinema RAW Light up to 8K/60P

The camera supports recording of two 8K formats, both Cinema RAW Light, which is amazing for post-production grading and archiving, or MP4, which is optimized for faster online use. Formats can be selected according to the user's needs. In addition, 5.9K in Super 35mm mode and 2.9K in Super 16mm mode are also available for internal recording to CFexpress cards.

Cinema RAW Light can be recorded internally with data optimized for HDR video rendering. Cinema RAW Light video files have been optimized for better efficiency to achieve 12-bit recording in all frame rates.

Thanks to three newly-developed Cinema RAW Light modes (High quality RAW HQ, standard quality RAW ST, and Light recording RAW LT), users can select the RAW video mode according to their shooting needs.

Supports 8K HDR Recording (HLG/PQ)

The combination of ultra-high-definition 8K recording and HDR lets users shoot more realistic and lifelike video. The EOS R5 C camera supports HDR recording in Hybrid Log Gamma (HLG) and Perceptual Quantization (PQ) formats. This helps ensure full color rendition and wide latitude with a great range from black to pure white – outstanding for the delivery of live streams, broadcasts and post-production projects.

Wide Variety of Recording Formats

The EOS R5 C camera offers users a wide variety of recording formats to choose from to fit individual workflows and output needs. Along with Cinema RAW Light, which provides light data sizes for RAW recording, the EOS R5 C camera supports MXF-based XF-AVC, which conforms to broadcasting standards, and highly versatile MP4.

  • Cinema Raw Light
    1. Three newly-developed modes: High quality RAW HQ, Standard quality RAW ST, and Light recording RAW LT
    2. 12-bit sampling depth
  • XF-AVC
    1. MXF Compliant
    2. 4K 60P Intro & Long GOP
    3. H.264
    4. Interlace Recording
  • MP4
    1. High Versatility
    2. HEVC & H.264

Simultaneously Record Different Formats

The EOS R5 C camera is capable of recording two independent video files simultaneously, such as Cinema RAW Light and MP4 at various resolutions including 4K and HD, as well as lightweight proxy files for various professional workflows.

XF-AVC and MP4 Codecs for 10-bit 4:2:2 Video

In addition to Cinema RAW Light, the EOS R5 C camera offers XF-AVC and MP4 codecs to provide familiar and trusted codecs for easy ingestion and post-production workflows across cinema, broadcast, and many professional markets and applications. XF-AVC offers robust 10-bit 4:2:2 files in a .MXF wrapper for simple compatibility with non-linear editing systems (NLEs) and existing workflows.

4K and 2K Oversampling

The EOS R5 C camera reads out signals for all effective pixels from its full-frame 8K sensor, enabling 4:2:2 10-bit high-definition recording through oversampling during 4K and 2K video recording. A high-definition debayer algorithm has been included and the 4K generated from the abundant RGB data of the 8K sensor enables more refined imaging capabilities with less incidence of moiré, false colors, “jaggies” and noise.

HDMI 8K RAW Output to Compatible Recorders

The EOS R5 C camera supports RAW output via HDMI and ProRes RAW recording with compatible external recorders such as Atomos devices*. By connecting the EOS R5 C camera with a supported external recorder, users can shoot in Apple ProRes RAW at up to 8K 30P. Proxy data can also be simultaneously recorded to an SD card in-camera, providing efficient post-production operations. *Only Atomos NINJA V+ is supported as of January 2022. A separate HDMI cable is required to connect to the NINJA V+.

Up to 4K 120P Slow and Fast Motion Recording Mode in 4:2:2 10-bit

The EOS R5 C camera can record High Frame Rate (HFR) movies at up to 120P at 4K resolution (4096x2160/3840x2160) in 4:2:2 10-bit without cropping the sensor.

Amazing for shooting scenes full of fast-paced action, the EOS R5 C camera's fast and intuitive autofocus remains enabled even during HFR recording, making it ideal when shooting from a gimbal or drone, delivering outstanding focus accuracy at HFR or at common frame rates.

Simultaneous Audio Recording Enabled with HFR

Unlike some other cameras where audio is not recorded during HFR shooting, the EOS R5 C camera can record .WAV audio as a separate file from video, virtually eliminating the need for separate audio recording and delivering HFR video and audio files in one convenient device when shooting slow motion or fast motion video.

Canon Log 3 Expands Expressive Possibilities

The EOS R5 C camera features Canon Log 3, which is found in many Canon cameras and works with multiple Canon EOS and Cinema EOS cameras. The wide dynamic range can be used for a wider range of grading after shooting. Canon Log 3 is a gamma that is designed for simple grading, such as tightening dark areas and adjusting tones. It carries on Canon Log's ease of use with less noticeable noise. It can also be used when shooting with other Cinema EOS system cameras such as the EOS C300 Mark III and EOS C70 cameras.

Enhanced Image Stabilization

Enhanced image stabilization is achieved through coordinated control when Canon's RF lenses with optical IS are combined with the EOS R5 C camera's electronic IS when shooting XF-AVC or MP4 formats. With an RF lens that has optical IS and the electronic IS in the EOS R5 C camera, coordinated control helps achieve the optimum hand-shake correction effects. This helps achieve better anti-vibration performance than with conventional IS-equipped EF lenses (using optional Mount Adapter EF-EOS R) and electronic IS together.

Canon VR with RF5.2mm F2.8 L Dual Fisheye Lens Support and Workflow

The EOS R5 C camera is an excellent camera pairing with Canon's RF5.2mm F2.8 L Dual Fisheye Lens to achieve stereoscopic 3D 180° VR video (viewing in 3D requires the use of a compatible Head Mount Display). A plug-in for Adobe® Premiere Pro® and Canon's EOS VR Utility are available to streamline the workflow from shooting to editing.

Dual Pixel CMOS AF with iTR AF X

Canon's Dual Pixel CMOS AF technology uses every pixel on the imaging sensor to detect focus, and also to capture actual image information achieving both high precision focusing and high image quality.

With most Canon RF and EF lenses, AF for video can be carried out over approximately 80% of the vertical and horizontal area of the screen. Touch AF allows positioning an AF point by simply touching the LCD screen, in addition to quick manual positioning with the 8-way Multi-controller on the rear of the camera.

In addition, the camera features Eye AF/Head Detection AF, developed with the use of deep learning technology to improve subject tracking. It also provides human detection (eyes/face/head), allowing it to track subjects accurately even when AF control is not available.

Users can track focusing as desired depending on their subject or shooting situation. A wide variety of AF modes enable autofocus shooting that flexibly responds to the subject's movement. Users can leave focusing to the camera and concentrate on their camera work.

i Wireless connectivity for the transfer of video files requires the use of the Canon WFT-R10 wireless transmitter.
ii Continuous recording of video is dependent upon media capacity and continuous power to the camera. Continuous power options include Canon's PD-E1 USB power adapter (sold separately), or the DR-E6C DC coupler (sold separately) combined with the CA-946 compact power adapter (sold separately) or compatible third party solutions
iii The EOS R5 C camera does not feature In-Body Image Stabilization (IBIS). Electronic IS during video recording detects camera/lens movement or shake, and digitally moves the image on the image sensor to counter the detected movement, but the image sensor itself does not physically move. Electronic IS will slightly crop the outer edges of the full video recording area.
iv Effectiveness varies depending on the subject. In some cases, dogs, cats or birds may not be detected, while some animals other than dogs, cats or birds may be detected.

Type


Digital single-lens non-reflex AF/AE camera

Image Processor


DIGIC X

Recording Media


CFexpress card

  • Type B: Card slot


SD card

  • SD card speed class-compatible.
  • Compatible with UHS-II
  • Eye-Fi cards and Multimedia cards (MMC) are not supported.

Compatible Lenses

Canon RF lens group (excluding EF, EF-S and EF-M lenses)
When using Mount Adapter EF-EOS R: Canon EF or EF-S lenses (excluding EF-M lenses)

Lens Mount

Canon RF mount

Image Sensor Type

CMOS sensor (compatible with Dual Pixel CMOS AF)

Effective pixels

Approx. 45.0 megapixels

Sensor Size

Approx. 36.0 x 24.0 mm

Pixel Size

Approx. 4.40 µm square

Total Pixels

Approx. 47.1 megapixels

Aspect Ratio

3:2 (Horizontal:Vertical)

Color Filter System

RGB primary color filters

Low Pass Filter

Installed in front of the image sensor, non-detachable

Dust Deletion Feature

  1. Self Cleaning Sensor Unit
    • Removes dust adhering to the low-pass filter.
    • At power off only / Enable / Disable. Performed automatically (taking about approx. 2 sec. as indi-cated on the screen) or manually (taking about approx. 8 sec. as indicated on the screen).
    • After manually activated cleaning, the camera will automatically restart (Power OFF to ON).
    • When [Multi Shot Noise Reduction], [Multiple exposures], or [HDR mode] is set, [Clean now] and [Clean manually] cannot be selected.
  2. Dust Delete Data acquisition and appending
    • The coordinates of the dust adhering to the low-pass filter are detected by a test shot and appended to subsequent images.
    • The dust coordinate data appended to the image is used by the EOS Canon Digital Professional Software (v. 4.14 and higher) to automatically erase the dust spots.
    • Not available with EF-S lenses, in cropped shooting or multi-exposure shooting.
  3. Manual cleaning (by hand)

Recording Format

Compliant to Design rule for Camera File system 2.0 and Exif 2.3*.
*Supports time difference information in Exif 2.31.

Image Format

JPEG, HEIF, RAW (CR3, 14 bit RAW format), C-RAW (Canon original); Movies: ALL-I, IPB, RAW

HDR Mode-Continuous Shooting

(1) 1 shot only
(2) Continuously
(3) Multiple Exposure

Advanced shooting operations

(1) Focus Bracketing
(2) Interval Timer
(3) Bulb Timer
(4) Multi-Shot NR

File Size

3:2 Aspect Ratio
Large/RAW/C-RAW: 8192 x 5464
Medium: 5808 x 3872
Small 1: 4176 x 2784
Small 2: 2400 x 1600

1.6x (Crop)*
Large/RAW/C-RAW: 5088 x 3392
Small 2: 2400 x 1600

4:3 Aspect Ratio
Large: 7280 x 5464
Medium: 5152 x 3872
Small 1: 3712 x 2784
Small 2: 2112 x 1600
RAW/C-RAW: 8192 x 5464

16:9 Aspect Ratio
Large: 8192 x 4608
Medium: 5808 x 3264
Small 1: 4176 x 2344
Small 2: 2400 x 1344
RAW/C-RAW: 8192 x 5464

1:1 Aspect Ratio
Large: 5456 x 5456
Medium: 3872 x 3872
Small 1: 2784 x 2784
Small 2: 1600 x 1600
RAW/C-RAW: 8192 x 5464

  • Values for Recording Pixels are rounded to the nearest 100,000 or 10,000.
  • For RAW and JPEG images, information outside the cropping area is not retained.
  • JPEG images are generated in the set aspect ratio.
  • RAW images are generated in [3:2], and the set aspect ratio is appended.

* Indicate an inexact proportion.

File Numbering

The following file numbers can be set:

  1. File numbering methods
    • Continuous numbering
      • The numbering of captured images continues even after you replace the card.
    • Auto reset
      • When you replace the card, the numbering will be reset to start from 0001. If the new SD card already contains images, the numbering will continue from the last recorded image in the card.
  2. Manual reset
    • Resets the file number to 0001, and creates a new folder automatically.

*When manually resetting the file number, folders can also be renamed.

RAW + JPEG / HEIF Simultaneous Recording

Simultaneous recording of any combination of RAW/C-RAW and JPEG/HEIF image-recording quality is supported.

Color Space

Selectable between sRGB and Adobe RGB

Picture Style

  1. Auto
  2. Standard
  3. Portrait
  4. Landscape
  5. Fine Detail
  6. Neutral
  7. Faithful
  8. Monochrome
  9. User Defined 1-3
    • In Scene Intelligent Auto, [Auto] will be set automatically.
    • [Standard] is the default setting for [User Def. 1-3].

White Balance Settings

  1. Auto (Ambience priority/White priority)
  2. Day Light
  3. Shade
  4. Cloudy*
  5. Tungsten light
  6. White fluorescent light
  7. Flash
  8. Custom (Custom WB)
  9. Color temperature

* Effective also in twilight and sunset.

Auto White Balance

Option between ambience priority and white priority settings.

White Balance Shift

Blue/amber bias: +/-9 levels
Magenta/green bias: +/-9 levels
Corrected in reference to the current WB mode's color temperature.

Viewfinder Type

OLED color electronic viewfinder; approx. 5.76 million dots resolution

Coverage

Approx. 100% vertically and horizontally relative to the shooting image area (with image quality L, at approx. 23mm eyepoint).

Magnification / Angle of View

Approx. 0.76x / Approx. 35.5 degrees (with 50mm lens at infinity, -1 m-1)

Eye Point

Approx. 23mm (at -1 m-1 from the eyepiece lens end)

Dioptric Adjustment Range

Approx. -4.0 to + 2.0 m-1 (dpt)

Viewfinder Information

  1. Maximum burst
  2. Possible shots/Sec. until self-timer shoots
  3. Focus Bracketing/ Multiple-exposure/HDR shooting/Multi Shot Noise Reduction/Bulb time/Interval timer
  4. Shooting mode
  5. AF method
  6. AF operation
  7. Image quality
  8. Card
  9. Drive mode
  10. Metering mode
  11. No. of remaining shots for focus bracketing, multiple exposures, or interval timer
  12. Electronic level
  13. Movie recording time available
  14. Battery level
  15. Image Stabilizer (IS mode)
  16. Histogram (Brightness/RGB)
  17. Quick Control button
  18. Anti-flicker shooting
  19. White balance/White balance correction
  20. Picture style
  21. Auto Lighting Optimizer
  22. Still photo cropping / Aspect ratio
  23. AF point (1-point AF)
  24. AEB/FEB
  25. View Assist
  26. HDR PQ
  27. Flash ready / FE lock / High-speed sync
  28. Electronic shutter
  29. Touch shutter / Create folder
  30. AE lock
  31. Shutter speed / Multi-function lock warning
  32. Aperture value
  33. Wi-Fi® function
  34. Wi-Fi® signal strength
  35. Bluetooth® function
  36. Exposure simulation
  37. Magnify button
  38. ISO speed
  39. Highlight tone priority
  40. Exposure compensation
  41. Exposure level indicator

Autofocus Focus Method

Dual Pixel CMOS AF II

Number of AF zones available for Automatic Selection

AF area: Horizontal: Approx. 100% x Vertical: Approx. 100%
Stills: Max. 1053 zones (39 x 27)
Movies: Max. 819 zones (39 x21)

AF Working Range

EV -6 to 20 (f/1.2 lens*, center AF point, One-Shot AF, at 73°F/23°C, ISO 100)
* Except RF lenses with a Defocus Smoothing (DS) coating.

AF Methods

AF Method
Face+Tracking AF
Spot AF
1-point AF
Expand AF Area
(Above, below, left and right/Around)
Zone AF
Large Zone AF (Vertical/Horizontal)

Subject to Detect

People, Animals, No Priority
* Available with [AF method] set to Face+Tracking, Zone AF, or Large Zone AF (vertical/horizontal)

Exposure Control / Metering Modes

Real-time metering with image sensor (384 [24x16 zone metering])

  1. Evaluative metering (AF point-linked)
  2. Partial metering (approx. 6.1% of the area at the center of the screen)
  3. Spot metering (approx. 3.1% of the area at the center of the screen)
  4. Center-weighted average metering

Metering Range

EV -3 - 20 (at 73°F/23°C, ISO 100) (Still Photo Shooting)

Exposure Control Modes

  1. Scene Intelligent Auto
  2. Flexible-priority AE (Fv)
  3. Program AE (P)
  4. Shutter-priority AE (Safety shift possible) (Tv)
  5. Aperture-priority AE (Safety shift possible) (Av)
  6. Manual exposure (M)
  7. Bulb
  8. Custom shooting mode C1, C2, C3

ISO Speed Range

Available ISO speeds; user-set

Normal ISO 100-51200 (1/3- or 1-stop increments)
Expanded L: equivalent to ISO 50, H: 102400
  • For [Highlight tone priority], the minimum ISO speed limit will be ISO 200 to 51200.
  • Expanded ISO cannot be set for HDR mode or during HDR PQ shooting.

User-defined ISO range - still photo shooting

ISO Speed Range ISO Speed
Minimum L (50)–51200 (in 1-stop increments)
Maximum ISO 100–H (102400) (in 1-stop increments)


* Expanded ISO speeds are noted as being “equivalent” to these speeds.

User-defined Auto ISO range - still photo shooting

Auto Range ISO Speed
Minimum ISO 100–25600 (in 1-stop increments)
Maximum ISO 200–51200 (in 1-stop increments)

ISO Auto details in still photo shooting

Shooting Mode No Flash Using Flash
Auto ISO 100-12800 ISO 100-1600*3
P ISO 100*1*2-51200*2 ISO 100*1*2-6400*2*4
TV
AV
M
B ISO 400*3

*1 ISO 200 when [Highlight tone priority] is set to [Enable] or [Enhanced].
*2 Varies depending on [Maximum] and [Minimum] of [Auto range].
*3 If outside the setting range, changed to the value most close to ISO 400.
*4ISO 1600 when using a lens that is not compatible with Variable control of maximum ISO Auto limit for E-TTL.

Exposure Compensation

Manual +/-3 stops in 1/3- or 1/2-stop increments
AEB +/-3 stops in 1/3- or 1/2-stop increments

AE Lock

  1. Auto AE lock
    • The metering mode for AE lock after focus can be customized.
  2. User-applied AE lock
    • In the Fv, P, Tv, Av and M modes, enabled with the AE lock button. (Press again to update.)
    • Enabled in all metering modes.

Shutter Type

  1. Mechanical
  2. Electronic 1st-Curtain
  3. Electronic Shutter (1st and 2nd curtain - silent*)

*Cannot be used in conjunction with the following functions: flash photography, HDR shooting, multiple exposures, Multi Shot Noise Reduction, AEB, HDR PQ, anti-flicker shooting, Dual Pixel RAW shooting, Digital Lens Optimizer [High].
* A shutter release sound is not generated. However, note that the sounds other than the shutter release sound (aperture, focusing lens drive sound/electronic sound, etc.) may be generated.
* In electronic shutter shooting under conditions such as flash firing by other cameras or with fluores-cent lighting or other flickering light sources, a strip of light or banding due to the brightness difference may be recorded in the image.

Shutter Speeds

When [Mechanical] or [Elec. 1st- curtain] is set: 1/8000-30 sec, bulb
When [Electronic] is set: 1/8000-0.5 sec.

X-sync Speed

Mechanical Shutter: 1/200 sec.
Elec. 1st-curtain: 1/250 sec.

Shutter Release

Soft-touch electromagnetic release

Self Timer

10-sec. delay, 2-sec. delay

Shutter Lag Time

Flash Mechanical Shutter Electronic 1st Curtain Electronic shutter
Shutter-release time lag *Measured with shutter button pressed fully from half-pressed position

Not used Approx. 81 ms Approx. 50 ms Approx. 50 ms
Used N/A N/A -

Still Photo Image Stabiization

Optical IS with RF and EF lenses equipped with Image Stabilization.

  • Always on
  • Only for shot

Video Image Stabilization

A narrower angle of view is used when digital image stabilization is selected in the menu. This is equivalent to approx. 1.1x longer focal length when Electronic Image Stabilization mode (Standard) is selected. Also, this is equivalent to approx. 1.43x longer focal length when Electronic Image Stabilization mode (High) is selected.

External Speedlite

E-TTL balance

Ambience priority, standard, flash priority

Compatible E-TTL Speedlites

Canon EX- and EL-series Speedlites

E-TTL II Flash Meterings

  1. Evaluative (Face Priority)
  2. Evaluative
  3. Average

Slow Sync (P/Av modes)

  1. 1/250* - 30 sec., auto
  2. 1/250* - 1/60 sec., auto
  3. 1/250* sec. (fixed)

* Electronic 1st curtain shutter only
* With mechanical shutter -- 1/200 sec.

Flash Function Menu

Provided for EX- and EL-series Speedlites

Flash Exposure Compensation


+/-3 stops in 1/3- or 1/2-stop increments

Continuous flash control

  1. E-TTL each shot
  2. E-TTL 1st shot

DRIVE SYSTEM

Drive Modes and Continuous Shooting Speed

Drive Modes Icon Display Mechanical Shutter Electronic 1st curtain Electronic shutter
Single Shooting Yes Yes Yes
High-speed
Continuous +
shooting*¹

Green*² Approx. 12 shots/sec. Approx. 20 shots/sec
White Approx. 9.2 shots/sec.
White (Blinking) Approx. 6.8 shots/sec.
High-speed
Continuous shooting
Green*² Approx. 6.0 shots/sec. Approx. 8.0 shots/sec.
White Approx. 5.1 shots/sec. Approx. 6.0 shots/sec.
White (Blinking) Approx. 3.9 shots/sec. Approx. 4.9 shots/sec.
Low-speed
Continuous Shooting
Green*² Approx. 3.0 shots/sec.
White
White (Blinking)
Self-timer:10 sec / remote control Yes
Self-timer:2 sec / remote control Yes

* Automatically switches among modes Green, White, and White (Blinking).
* Continuous shooting speed is lower under certain shooting and measurement conditions: shutter speed, aperture value,subject conditions, brightness, type of lens, timing when internal memory becomes full (temporarily disables shooting)
- Mechanical / electronic 1st curtain: use of flash, anti-flicker shooting: Enable, Dual Pixel RAW shooting- Enable, type of battery, battery level, temperature, use of a battery grip, use of WFT, use of built-in Wi-Fi.
- Electronic shutter: State of aperture in continuous shooting
* With Certain lenses, zooming during continuous shooting with electronic shutter may cause changes in exposure even at the same f/number.
*1: For shooting RAW images in [High-speed continuous +], 13-bit A/D conversion will apply regardless of the mode (A, B, or C).
*2: With Anti-flicker shooting, max. continuous shooting speed may drop to approx 6.2 fps (with electronic 1st curtain shutter) or approx. 4.9 fps (with mechanical shutter).
* For Dual Pixel RAW shooting, Low-speed continuous shooting will apply.

Still photo file size / Number of possible shots / Maximum burst for continuous shooting

Still Shooting with Mechanical Shutter or electronic 1st-curtain shutter, shot at approx. 12 fps

Quality
Maxiumum Burst [Approx.]
SD Card (UHS-I) SD Card
[High-speed]
(UHS-II)

CFexpress Card
JPEG*4 L (fine) 190 350 350
HEIF*³ L (fine) 190 280 280
RAW*4 RAW 66 87 180
C-RAW 130 260 260
RAW+JPEG*4 RAW +
L (fine)
64 79 160
C-RAW +
L (fine)
100 130 240
RAW+HEIF*³ RAW +
L (fine)
61 74 90
C-RAW +
L (fine)
110 140 140

With Electronic shutter, shot at approx. 20 fps

Quality
Maxiumum Burst
CFexpress Card
JPEG*4 L (fine) 170
RAW*4 RAW 83
C-RAW 130
RAW+JPEG*4 RAW + L (fine) 84
C-RAW + L (fine) 150

*¹: The number of possible shots and maximum burst (SD card) apply to a 32 GB SD card based on Canon testing standards.
*²: The number of shots available and maximum burst (CFexpress card) apply to a 325 GB CFexpress card conforming to Canon testing standards.
*³: Available when [HDR PQ] for HDR shooting is set to [Enable].
*⁴: When [HDR PQ] for HDR shooting is set to [Disable].
*⁵: With mechanical shutter or electronic 1st-curtain shutter, shot at approx. 12 fps.
* File size, number of possible shots, and maximum burst vary depending on shooting conditions (including 1.6x crop/aspect ratio, subject, memory card brand, ISO speed, Picture Style, and Custom Function).

HDR SHOOTING- STILLS

HDR PQ Shooting


Disable / Enable

HDR PQ Shooting - Still

Recording format Bit depth Color sampling method HDR specification
HEIF 10 bit YCbCr 4:2:2 ITU-R BT.2100 (PQ)

VIDEO SHOOTING

Focusing

Dual Pixel CMOS AF

Exposure Compensation

+/-3 stops in 1/3- or 1/2-stop increments

Canon Log

Provided (Off / Canon Log 3)

Video Recording Size and Frame Rates

Click here for full specifications

Recording Times

Click here for full specifications

LCD Screen Type

TFT color, liquid-crystal monitor

Monitor Size

3.2-inch (screen aspect ratio of 3:2)
3.15 in./8.01cm diagonal (2.63 in./6.67cm width, 1.75 in./4.44cm height)

Dots

Approx. 2.1 million dots

Coverage

Approx. 100% vertically/horizontally

Brightness Control

Manually adjustable to one of seven brightness levels

Coating

Clear View LCD II

  • Anti-smudge coating applied.
  • Anti-reflection coating not applied.

Interface Languages

29 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Ukraine, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Malay, Indonesian, Japanese)

PLAYBACK

Display Format

Item Still Photo Movie
-
Magnify zoom display 1.5x-10x (5 levels) -
AF point display Yes -
Grid display Off / 3×3 / 6×4 / 3×3+diag -
Rating OFF / 1 to 5 Stars
Select images / Select range / All images in folder / All images on card /
All found images
Image Search Search conditions
Rating / Date / Folder / Protect / Type of file
Protect Select images / Select range / All images in folder / Unprotect all images in folder / All images on card /
Unprotect all images on card /All found images
In-camera RAW image processing Supported -
Resizing Supported -
Cropping Supported -

Highlight Alert


The white areas with no image data will blink.

Histogram

Brightness and RGB

QUICK CONTROL FUNCTION

Function


The Quick Control screen is accessed by pressing the Quick Control button during still photo shooting.

Image Protection and Erase

  1. Single image (select image)
  2. Select range
  3. All images in a folder
  4. All images on card
    • Image browsing and image search can be based on ratings.
    • Ratings-based image selections also possible with DPP.
  5. All found images (only during image search)

Erase

Except protected images

  1. Select images to erase
  2. Select range
  3. All images in folder
  4. All images on card
  5. All found images (only during image search)

Direct Printing / Compatible Printers

Not supported

DPOF

Compliant to DPOF Version 1.1

Wi-Fi Standards Compliance

IEEE 802.11a/ac/b/g/n

Transmission Method

DS-SS modulation (IEEE 802.11b)
OFDM modulation (IEEE 802.11g/n/a/ac)

Transition Frequency (Central Frequency)

2.4 GHz band
Frequency: 2412 to 2462 MHz Channels: 1 to 11 channels

5 GHz band Frequency: 5180 to 5825 MHz

Channels: 36 to 165 channels

Connection Method


(1)Camera access point mode
(2)Infrastructure mode

Security

Connection Method Authentication Encryption
Encryption Key Format and Length
Camera Access Point WPA2-PSK AES • ASCII 8 characters
Open Disable
Infrastructure Open WEP • Hexadecimal 10 digits
• Hexadecimal 26 digits
• ASCII 5 characters
• ASCII 13 characters


Disable
Shared key WEP Same as WEP above
WPA-PSK TKIP
AES
• Hexadecimal 64 digits
• ASCII 8–63 characters
WPA2-PSK

Communication with a Smartphone

Images can be viewed, controlled, and received using a smartphone.
Remote control of the camera using a smartphone is possible depending on the Camera Connect specifications.
Images can be sent to a smartphone.

Remote Operation Using EOS Utility

The camera can be controlled via Wi-Fi® using EOS Utility.

Print from Wi-Fi® Printers

Not supported.

Send Images to a Web Service

Still photos (RAW, C-RAW, HEIF, and JPEG) and movies (MP4) can be uploaded to image.canon server album.
With the image.canon server, images can be sent to social media or a photo album link can be sent (by the image.canon specifications).

Bluetooth Standards Compliance

Bluetooth Specification Version 5.0 compliant (Bluetooth low energy technology)

Transmission Method

GFSK modulation

Customization

Custom Functions

22 Custom Functions are settable.

Custom Controls

Customizable Buttons

Shutter button
Movie button
MODE button
AF-ON button
AE lock button
AF point button
Depth of field preview button
Lens AF stop button
Multi-function button
LCD panel illumination button
Set button
Multi-controller

Customizable Dials

Main dial
Quick control dial 1 and 2
Control ring

My Menu Registration

  • Up to six top-tier menu items and Custom Functions can be registered.
  • Up to five My Menu tabs can be added.
My Menu tab overall operations
  • Adding a tab
  • Deleting tabs in a batch
  • Deleting all tab items
  • Setting the menu display
My Menu tab detailed operations
  • Selecting a registered item
  • Sorting registered items
  • Deleting selected registered items
  • Deleting registered items in a batch
  • Deleting tabs
  • Changing a tab name (16 ASCII characters)

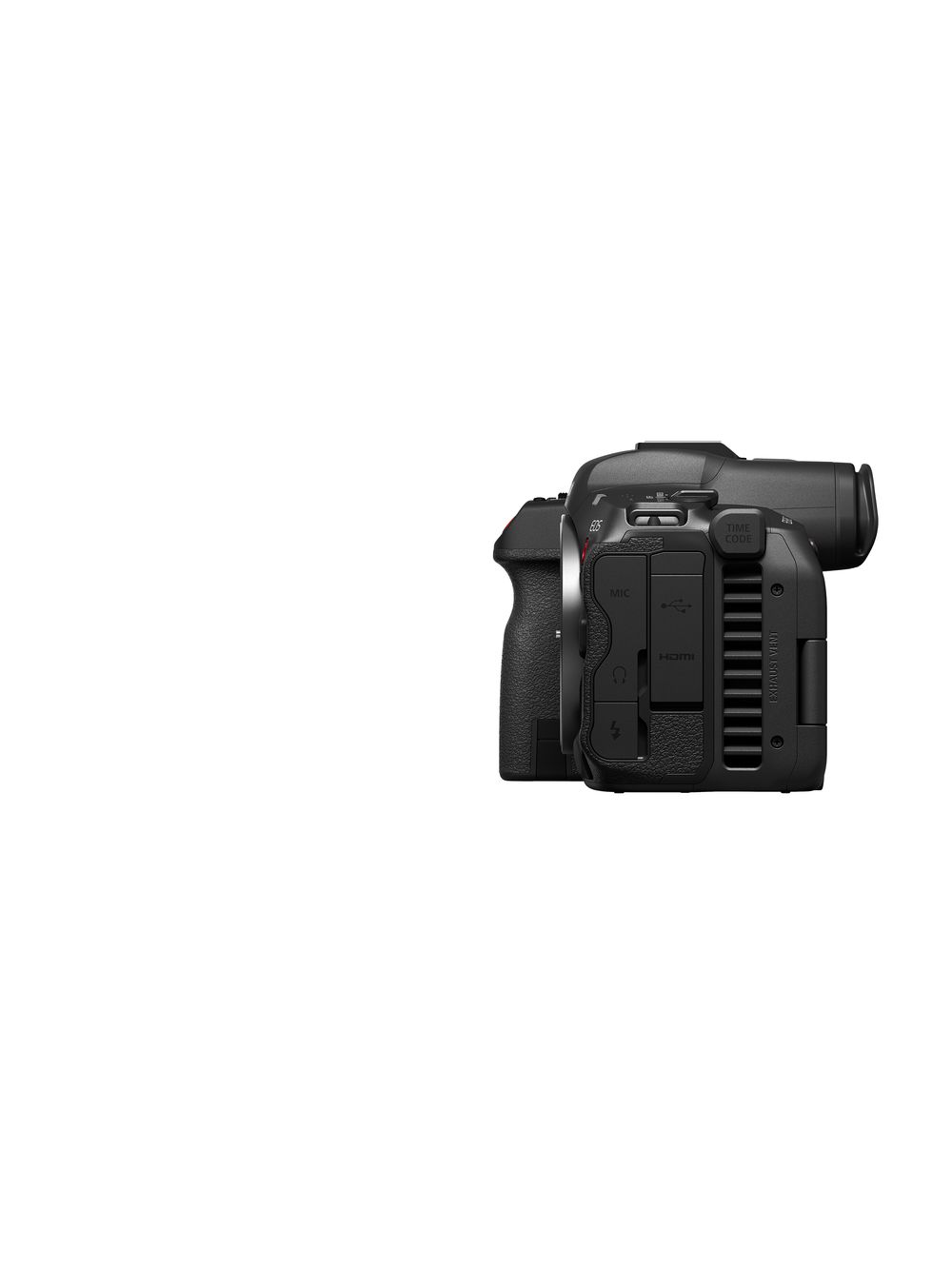

Interface / USB Terminal

Equivalent to Hi-Speed USB (USB 3.1 Gen 2)

  • For PC communication
  • Terminal type: USB Type-C
  • Shared with terminal for in-camera charging with USB Power Adapter PD-E1.
  • In-camera Charging: Equivalent to USB type-C (5 V/1.5 A), but use should be restricted to USB Power Adapter PD-E1.
  • Video Output (UVC).
  • Canon App(s) for iPhone
  • PTP connection/GP-E2

Video Out Terminal

HDMI micro OUT terminal Type D (Resolution switches automatically) / CEC not compatible

  • Images can be displayed through the HDMI output and on screen at the same time.
  • Images will not be displayed unless [NTSC] or [PAL] is properly set according to the video system of the TV set.

Clean HDMI output

Provided

Microphone Input Terminal

3.5mm diameter stereo mini jack

Headphone Terminal

3.5mm diameter stereo mini jack

Power Source

Battery

LP-E6NH/LP-E6N/LP-E6*

  • With the AC Adapter AC-E6N + DC Coupler DR-E6, AC power is possible.
  • With the USB Power Adapter PD-E1, in-camera charging of LP-E6NH is possible. The USB Power Adapter PD-E1 is not compatible with powering the camera.

* LP-E6 is automatically recognized as Mode C – Blinking White Drive mode regardless of capacity.

Battery Check

Automatic battery check when the power switch is turned ON.
Displayed in 6 levels on top LCD panel.

  • Battery level can be checked on the LCD panel and in the viewfinder.
    Battery Info display in Set-up Menu:
  • Type of power source used.
  • Remaining capacity (percentage of battery charge remaining).
  • Recharge performance: (3-level display of battery's ability to hold a charge)

Start-up Time

Approx. 0.4 sec.

  • Based on CIPA testing standards.

Dimensions (W x H x D)

Approx. 5.6 x 4.0 x 4.4 in. / 142 x 101 x 111mm

  • Based on CIPA standards.

Weight

Approx. 1.7 lbs. / 770g (including battery, CFexpress card; without body cap)
Approx. 1.5 lbs. / 680g (body only; without battery, card or body cap)

Working Temperature Range

32-104° F / 0-+40°C

Working Humidity

85% or less

Recommended Accessories
Free Shipping *Purchases over $75
Go to Top of Page
