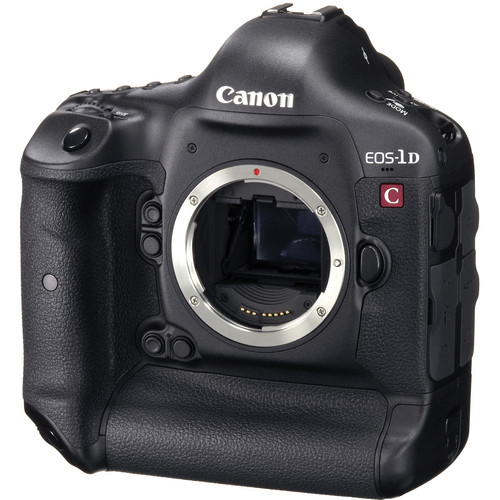

Canon EOS-1D C 4k Digital SLR Camera (Body)

MFR# 6994B002
Out of Stock
Hunt's Guarantee
$7,999.00
Quantity

Included Items:

Canon EOS-1D C Body, Eyecup Eg, Battery Pack LP-E4N, Battery Charger LC-E4N, Cable Protector and Clamp, Stereo AV Cable AVC-DC400ST, USB Interface Cable IFC-200U, Wide Strap L7, EOS Digital Solution Disk, Software Instruction Manual


  • Compact, Durable, Self-Contained 4k Video Recording
  • Canon 18.1 Megapixel Full-Frame CMOS Sensor
  • 4K Motion JPEG YCbCr 4:2:2, 8-bit video recording
  • Full HD Recording and Super 35mm Crop Mode
  • Dual DIGIC 5+ Image Processors
  • Canon Log Gamma
  • HDMI Output with Time Code
  • Compatibility with EF Cinema and EF Lenses
  • Built-In Headphone Terminal
  • WFT-E6A Wi-Fi Unit With Remote Capabilities
  • Fully Featured 12.0 fps, 18.1 Megapixel Full-Frame DSLR Camera
  • FACTORY UPDATE NOW AVAILABLE

Now under the umbrella of the Cinema EOS System, Canon is extending the flexibility of digital 4K origination with the EOS-1D C - the first Canon hybrid DSLR to offer onboard 4K motion imaging and Full HD motion imaging on CF cards, in a rugged, ultra-compact form factor. Coupled with Canon's compact EF-mount lenses, the EOS-1D C facilitates 4K image origination in the tightest and most challenging environments, opening up fresh cinematic opportunities along the way.

For anyone familiar with Canon's 5D Mark II or 1D product line, the size and weight of the EOS-1D C will be immediately familiar. The EOS-1D C features an 18.1-megapixel full frame CMOS image sensor that offers a wide range of image acquisition options, including 4K (4096 x 2160), HD (1920 x 1080); or 18-megapixel (5184 x 3456) still images. The 4K is recorded as Motion JPEG; the HD is recorded as H.264; and the still images are recorded as RAW or JPEG. All of the selected motion imaging formats can be recorded as normal gamma-corrected video or with Canon Log. In addition, like with other Cinema EOS products, the EOS-1D C exhibits incredible low-light performance, ensuring optimum image quality under conditions of extremely low scene illumination, essential for natural-looking image capture when shooting in challenging environments.

For capturing stills, the EOS-1D C offers the same level of high performance as an EOS DSLR, with top-of-the-range focusing, exposure, and burst mode. The EOS-1D C is designed to go where other 4K cameras cannot go - into hostile environments, into very cramped spaces, mounted on the end of extended jib arms, or embedded on-set.

With onboard 4K recording at 24p or HD recording at a range of frame rates up to 60p; and Clean HD via HDMI, the EOS-1D C offers additional capabilities for film and TV production as well as specialty image acquisition applications. For added versatility, record start/stop can be remotely controlled by EOS Utility Software via a WFT unit.

Compact, Durable, Self-Contained 4k Video Recording
The EOS-1D C is an HD video powerhouse providing cinematographers 4K video capture in a single unit, with no need for external power or recording devices. The EOS-1D C is fully self-contained, with the ergonomic ease-of-use portability one expects from a Canon DSLR. Control layout is intuitive for both still and video shooting and the compact size provides an unobtrusive method to getting your desired footage. The EOS-1D C is also fully sealed for protection against dust and moisture.

Canon 18.1 Megapixel Full-Frame CMOS Sensor
The EOS-1D C carries the latest generation of Canon's Full-Frame CMOS sensor. With a Full-Frame sensor, Canon EF and EF Cinema lenses will perform to their true potential, while improved signal-to-noise ratio provide clearer shadows and highlights in both bright and low-light environments. Achieve high quality results across the ISO range from 100 to 51200, expandable from ISO 50 to 204800. The sensor in the EOS-1D C also minimizes the rolling shutter effect with a high-speed read across the sensor bus for true-to-life images.

4K Motion JPEG YCbCr 4:2:2, 8-bit video recording
The EOS-1D C is a completely self-contained device that captures 4K video in a cropped-sensor configuration at 24fps in YCbCr color space with a sampling ratio of 4:2:2 and 8-bit depth. Color and luminescence are preserved, while footage can easily adapt to existing post-production workflows without conversion. 4K video can be monitored on the camera's rear LCD, or HD video can be output via HDMI to an external recorder for proxy editing. 4K files can also be played in native resolution using the EOS MOVIE Player.

Full HD Recording and Super 35mm Crop Mode
In addition to standard frame rates of 30fps, 25fps and 24fps, the EOS-1D C also enables Full HD recording at 60fps and 50fps and supports high-speed shooting for spectacular slow-motion footage. The camera's built-in LCD monitor can both preview and play back footage at its native frame rate. The EOS-1D C also supports Super 35mm Crop in Full HD at 30fps, 25fps, and 24fps. Image compression is H.264 and HDMI support permits external monitoring and playback of footage independent of shooting mode. When monitoring Super 35mm Crop images, the monitor automatically masks the image to aid composition.

Dual DIGIC 5+ Image Processors
The EOS-1D C utilizes dual DIGIC 5+ Image Processors for stunning speed and image quality. Each DIGIC 5+ Image Processor contains twin 4-channel A/D converters for outstanding image quality, and refined algorithms reduce noise at high ISO values. The EOS-1D C also applies real-time correction of chromatic aberration and other optical artifacts based on data stored in-camera. Lens data can be added and deleted by using the included EOS Utility software.

Canon Log Gamma
Canon Log Gamma is a setting that sets the EOS-1D C to maximize dynamic range and provide a wide exposure latitude. The files produced using log format are ideal for post-production processes where corrections, color matching, and grading are applied, providing users with a high level of creative freedom in post-production without substantially degrading image quality. When using Canon Log, the EOS-1D C can provide a dynamic range of up to 800%.

HDMI Output with Time Code
The EOS-1D C offers several new capabilities via HDMI output. Connect via HDMI to an external video recorder and output uncompressed YCbCb 4:2:2 8-bit video footage. Output frame rate is independent of shooting rate, allowing it to be matched to the capabilities of the external recorder. HDMI output supports Full HD video, even when recording 4K video to the on-board CF cards. Time code is embedded into the footage for easy synchronization of audio or visual effects. Camera control is also enabled via HDMI; the transport controls on the external recorder can be used to control the camera remotely. In addition, footage can be previewed simultaneously on the camera's LCD monitor and via the HDMI output for multiple monitoring options.

Compatibility with EF Cinema and EF Lenses
The EOS-1D C is compatible with the full line of Canon EF lenses, including EF Cinema lenses (Cinema zooms are compatible only in Super 35mm Crop mode; Cinema primes are compatible in all modes). Ultra-wide, zoom, 4x macro, tilt-shift, and super-telephoto lenses in the EF line are tools to realize your most ambitious cinematic vision. EF Cinema Lenses merges the technology of advanced Canon cinema optics and compatibility with a broad array of industry-standard accessories.

Built-In Headphone Terminal
The EOS-1D C includes a built-in headphone terminal which outputs unprocessed sound, giving you the clear audio image while the camera is recording it.

WFT-E6A Wi-Fi® Unit With Remote Capabilities
The EOS-1D C can connect to an optional Wi-Fi® transmitter unit WFT-E6A to provide unique capabilities not found in competitive units. Users can control the EOS-1D C using any web-enabled devices such as laptops, smartphones, and tablet PC's. Functions of the EOS-1D C with the WFT-E6A include the ability to adjust shooting parameters, start and stop the camera, monitor a remote feed and input metadata. Bluetooth v2.1 +EDR communicates with external GPS units to embed location data with your footage.

Fully Featured 12.0 fps, 18.1 Megapixel Full-Frame DSLR Camera
The EOS-1D C shares its heritage with the EOS-1 Series family and is a world-class DSLR camera besides being a cinema powerhouse. Dual DIGIC 5+ Image Processors and an 18.1 Megapixel Full-Frame CMOS sensor provide a burst shot rate of 12.0 fps for capturing the action with exceptional quality. With ISO sensitivity ranging from 100 to 51200, expandable to L: 50, H1: 102,400, H2: 204,800, the EOS-1D C allows you to grab the best possible shot even in the most challenging lighting. The 61-Point High-Density Reticular autofocus system with a coordinated 100,000 pixel RGB metering system provides sharp images with incredible color and clarity.

Imaging Sensor

Resolution
Approx. 18.1 million effective pixels (Total pixels: Approx. 19.3 million)

Recording Pixels
5208 x 3477 effective pixels

Sensor Type
Full-Frame CMOS sensor

Pixel Size
6.95 microns square

Lens Focal Length Factor
Same as indicated on lens (as indicated on lens)
4K: approx. 1.3x; Super 35mm Crop: approx. 1.6x

Lens

Compatible Lenses
Canon EF Lenses (excluding EF-S, EF-M lenses)

Canon EF Cinema (CN-E) lenses*

* Since the image circle of EF Cinema zoom lenses only support the image sizes of Super 35mm Crop and APS-C, vignetting will occur if you shoot larger image sizes.

Autofocus

Number of AF Points
61

Number of Cross-Type AF Points
1 to 5 cross-type AF points at f/2.8

- 10 to 20 cross-type AF points at f/4

- 15 to 21 cross-type AF points at f/5.6

- 1 cross-type AF point at f/8

(The number of cross-type AF points will differ depending on the lens.)

AF Area Selection Modes
Single-point AF (Manual selection)

- Auto selection 61-point AF

- Single-point Spot AF (Manual selection)

- AF point expansion (Manual selection, 4 points: up, down, left, and right)

- AF point expansion (Manual selection, surrounding 8 points)

- Zone AF (Manual zone selection)

AF point setting for vertical/horizontal orientation
Available

Focus Modes
One-Shot AF

- Predictive AI Servo AF*

- Manual focus

* For automatic AF point selection, the AF point to start the AI Servo AF operation can be selected. For automatic AF point selection, the active AF point can be displayed.

EOS Movie Shooting and Playback

Recording Format
MOV

  • 4K: Motion JPEG
  • Super 35mm Crop, Full HD, HD

- MPEG-4 AVC (H.264), variable bit rate

- Audio: Linear PCM, Meta information is embedded in the MOV file (no separate THM file)

- NTSC and PAL

Coverage
Approx. 100% vertically and horizontally

Movie Recording Resolutions, and Frame Rates (progressive)

Movie-recording size NTSC PAL Compression Method
4K (4096x2160) 24 fps 24 fps JPEG
Super 35mm Crop (1920x1080) 30 fps 25 fps ALL-I
IPB
24 fps 24 fps ALL-I
IPB
Full HD (1920x1080) 60 fps 50 fps ALL-I
30 fps 25 fps IPB
24 fps 24 fps ALL-I
HD (1280x720) 60 fps 50 fps IPB
ALL-I
SD (640x480) 30 fps 25 fps IPB

Movie Recording Size-related Figures

Movie-recording size NTSC Compression Method File Size (approx.) Total Recording Time (approx.)
4GB Card 32GB Card 128GB Card
4K 24 fps JPEG 3.76 GB/min. 60 sec. 8 min. 32 min.
Super 35mm Crop 30 fps
25 fps
24 fps		 IPB 385 MB/min. 9 min. 30 sec. 1 hr. 19 min. 5 hr. 16 min.
ALL-I 685 MB/min. 5 min. 44 min. 2 hr. 57 min.
Full HD 60 fps
50 fps		 ALL-I 1.36 MB/min. 2 min. 30 sec. 22 min. 1 hr. 29 min.
30 fps
25 fps
24 fps		 IPB 235 MB/min. 16 min. 2 hr. 9 min. 8 hr. 37 min.
ALL-I 685 MB/min. 5 min. 44 min. 2 hr. 57 min.
HD 60 fps
50 fps		 IPB 205 MB/min. 18 min. 2 hr. 28 min. 9 hr. 52 min.
All-I 610 MB/min. 6 min. 49 min. 3 hr. 19 min.
SD 30 fps
25 fps		 IPB 78 MB/min. 48 min. 6 hr. 28 min. 2 hr. 55 min.

Required Storage Card Performance

Movie-recording size NTSC Compression Method CF Card writing/Reading speed[Approx., MB/sec.] Bit Rate [Approx., Mbps]
4K 24 fps JPEG UDMA7
100 MB/sec. or faster		 500
Super 35mm Crop 30 fps
25 fps
24 fps		 IPB 20 MB/sec. or faster 50
ALL-I 30 MB/sec. or faster 90
Full HD 60 fps
50 fps		 ALL-I 60 MB/sec. or faster 180
30 fps
25 fps
24 fps		 IPB 10 MB/sec. or faster 30
ALL-I 30 MB/sec. or faster 90
HD 60 fps
50 fps		 IPB 10 MB/sec. or faster 27
ALL-I 30 MB/sec. or faster 80
SD 30 fps
25 fps		 IPB 10 MB/sec. or faster 10

Color Space
Color space matches the TV monitor

Color Sampling Method
- YCbCr 4:2:2 (8bit): 4K

- YCbCr 4:2:0 (8bit): Super 35mm Crop, Full HD, HD, SD

Color Profile (Color Matrix)
- Rec. ITU-R BT.601: 4K, SD

- Rec. ITU-R BT.709: Super 35mm Crop, Full HD, HD

Image Creation Processing
- Based on current Picture Style

- Canon Log gamma * View Assist possible.

Video Range
Full range (0-255)

Timecode
Count up: Rec run, Free run

Start time setting: Manual entry, Reset, Set to camera time

Count indicator: Rec/Play time (Recording and playback time), Timecode

Drop frame: Enable, Disable

Maximum File Size Per Video Clip
4GB

Maximum Length for a Movie
12 hours

HDMI Output for Movie Footage
Possible - Output frame rate: Auto/24p/50i/60i

- Adding time code is possible

- Possible to synchronize an external recording device to start/stop recording

Signal Compatible with HDMI Output
1080: 60i/50i/24p, 480/60p, 576/50p

HDMI Output Signal During Full HD Television Connection
Before movie shooting: 1080: 60i/50i/24p

During movie shooting: 1080: 60i/50i/24p

Audio Recording Method
Linear PCM

- Internal monaural microphone

- External stereo microphone jack

  • Recording level automatically adjusted.
  • Sampling frequency: 48 kHz, Bits: 16 bit x 2 ch
  • Compatible with a commercially-available external microphone with 3.5mm dia. stereo mini-jack.

Headphone Terminal
Stereo mini-jack (3.5mm diameter) provided * Max. -9dBv (with 16 kΩ)

Sound Recording Adjustment
Sound-recording level: Auto, Manual (64 levels), None

* With the movie silent setting, recording level can be changed with touch pad.

- Sound-recording meter: Provided

- Wind filter: Disable/Enable

Video Snapshots
Not provided

Creative Image Processing
Based on current Picture Style

- Canon Log gamma (View Assist possible)

Focusing
Same as focusing with Live View shooting

- During movie shooting, the image cannot be magnified for manual focusing.

- Compatible with power focus mode in movie shooting.

Metering Method
1. AF point-linked evaluative metering

- When the AF mode is Live mode or Face Detection Live mode

2. Center-weighted average metering

- For manual focusing or when the AF mode is set to Quick mode

- Metering range: EV 0 to EV 20 (At 73°F / 23°C and ISO 100, with 50mm f/1.4 lens)

Video Exposure Control
1. Program AE for movie shooting

- For shooting modes other than manual exposure and bulb

- Shutter speed (1/30-1/4000 sec., signal accumulation time), aperture, and ISO speed automatically set.

2. Manual exposure

- For manual exposure.

- Shutter speed (signal accumulation time), aperture, and ISO speed (auto/manual) manually set. The shutter speed (signal accumulation time) is limited to 1/4000 sec. at the maximum and to 1/30 sec. at the minimum for 24/25/30 fps or 1/60 sec. or higher for 50/60 fps.

ISO Speed
- P, Av, Bulb: Automatically set within ISO 100-25600

Expandable to H (equivalent to ISO 51200), H1 (equivalent to ISO 102400) and H2 (equivalent to ISO 204800).

- Tv: Automatically set within ISO 100-25600

- M: With Auto ISO, automatically set within ISO 100-25600.

With manual setting, ISO 100™25600 set manually (in 1/3- or wholestop increments). Expandable to H (equivalent to ISO 32000/40000/51200), H1 (equivalent to ISO 102400) and H2 (equivalent to ISO 204800).

* If highlight tone priority is set, the ISO speed range will be ISO 200-25600.

Exposure Compensation
Up to ±3 stops in 1/3-stop increments

AE Lock
Possible

- During movie shooting, press AE Lock button to set AE lock and the AF point selection button to cancel AE lock (no automatic cancellation).

- AE lock (canceled automatically when metering turns off) possible before movie shooting. Movie shooting can start while AE lock is in effect.

Movie Digital Zoom
Not Provided

Information Display
Switchable with INFO button (5 settings)

Image Stabilization
With an IS lens and the Image Stabilizer switch turned on, image stabilization operates during metering and movie shooting.

Final Image Simulation
Before shooting, the effects of the following settings will be reflected in the Live View image

Function
Exposure Auto Lighting Optimizer
Depth of field Peripheral illumination correction
White balance Chromatic aberration correction
White balance compensation Highlight tone priority
Picture Style

Still Image Capture During Video Recording
Still photos shooting possible during movie shooting by pressing the shutter button (Still image capture is not possible when Canon Log gamma is set, or when 4K, Super 35mm Crop, or Full HD recording at 60p/50p is set)

- Still shooting will interrupt the movie shooting.

- The still photo is inserted in the movie for about 1 sec.

- Exposure control used for movie shooting is applied to the still shooting.

- Flash cannot be used.

- Super high-speed continuous shooting at 14 fps cannot be selected.

Wireless Remote Control Shooting
Enabled with Wireless Controller LC-5. Possible only when the shutter button can start/stop the movie shooting.

Playback Methods
(1) Playback on camera LCD monitor

(2) Playback on TV connected with AV or HDMI cable

(3) Playback with ImageBrowser EX

* Recommended are (1) and (2), while (3) requires a high-performance personal computer.

Movie Shooting Battery Life
4K: 1 hr. 25 min. at 73°F / 23°C

1 hr. 15 min. at 32°F / 0°C

Full HD (30 fps, ALL-I): 2 hr. 10 min. at 73°F / 23°C

2 hr. at 32°F / 0°C

Movie Playback
The following playback is possible:

Playback, Slow motion (variable speed possible), Jump to first frame, Previous frame, Next frame, Jump to last frame, Edit first or last frame, and Audio volume (11 levels, including mute)

* The audio level when the camera is connected to a TV set is adjusted with the TV set.

Editing Out First/Last Scenes
First/last scenes editable (deletion) in 1-sec. increments

Still Photo Extraction
Possible with updated version of ImageBrowser EX

Image Recording

Image Type / Processing
JPEG, RAW (14-bit)

Image Format Options
JPEG (compression adjustable) RAW (CR2)

M-RAW

S-RAW

RAW + JPEG

M-RAW + JPEG

S-RAW + JPEG

Resolution Options
Large - 5184 x 3456 (Approx. 17.90 million pixels)

Medium 1 - 4608 x 3072 (Approx. 14.20 million pixels)

Medium 2 - 3456 x 2304 (Approx. 8.00 million pixels)

Small - 2592 x 1728 (Approx. 4.50 million pixels)

RAW - 5184 x 3456 (Approx. 17.90 million pixels)

M-RAW - 3888 x 2592 (Approx. 10.10 million pixels)

S-RAW - 2592 x 1728 (Approx. 4.50 million pixels)

Data Recording Format
Complies with Design rule for Camera File system 2.0 and Exif 2.3

Folder Setting
Creating new folders and selecting folders in the card is possible.

Storage Media
CF card (2 slots)

- Type I/II drive (Incompatible with Microdrive)

- High-speed writing possible with UDMA CF cards.

Recording Options
Standard

- Select one of the CF cards to record.

Auto switch card

- When the current card becomes full, the camera switches to the other card automatically.

Record separately

- The same image is saved to both cards, but in a different size (L, M1, M2, S, RAW, M-RAW, or S-RAW) that was set for the respective card.

Record to multiple

- The same image is saved to both cards in the same size (RAW+JPEG also possible).

Image copying: Possible between the two CF cards (2 slots).

Noise Reduction
Long exposure noise reduction (set with a menu):

- Functions with exposures 1 sec. or longer.

- [Auto] or [Disable](always applied) settable.

High ISO speed noise reduction (set with a menu):

- [Standard], [Low], [High], or [Disable] can be selected.

Performance

Imaging Processor
Dual DIGIC 5+ Image Processor

Maximum Frames Per Second
12 fps High-speed continuous shooting

14 fps Super high-speed continuous shooting:

Drive Modes
Single Shooting

High-speed continuous shooting (12 fps)

Low-speed continuous shooting (3 fps)

Silent single shooting

Self-timer (10 sec. and 2 sec.)

Super high-speed continuous shooting (14 fps)

Number of Maximum Frames / Burst
JPEG Large: 180

JPEG Medium 1: 310

JPEG Medium 2: 1390

JPEG Small: 6430

RAW: 38

M-RAW: 28

S-RAW: 41

RAW + JPEG Large: 17

M-RAW + JPEG Large: 19

S-RAW + JPEG Large: 20

High-speed continuous shooting with 8GB UDMA-7 card based on Canon's testing standards and may vary depending on shooting conditions.

Flash Sync Speed
Up to 1/250 sec.

Shutter "Lag" Time
(1) During SW-1 ON, time lag between SW-2 ON and start of exposure: Approx. 0.09 sec. *With flash, approx. 0.035 sec.

(2) Time lag between simultaneous SW-1/SW-2 ON and start of exposure: Approx. 0.55 sec.

Start-up Time
Approx. 0.1 sec (Based on CIPA testing standards)

UDMA High-Speed Compatible
High-speed writing possible with UDMA CF cards.

Image Playback

LCD Monitor
3.2-inch (Screen aspect ratio of 3:2)

- Approx. 1,040,000 dots

- Approx. 100% coverage

- Approx. 170° vertical and horizontal viewing angle

Brightness Adjustment
Manually adjustable to one of seven brightness levels

Playback Options
Single image display

Two types of single-image full display and two types of shooting information display.

Index display

4-image index and 9-index image

Jump display, Jump 1 image, Jump 10 images, Jump 100 images, Date, Folder,Movies, Stills, or Rating

Dust Reduction

3-Part Dust Reduction System
EOS Integrated Cleaning System:

1. Self Cleaning Sensor Unit - * Carrier wave type, removes dust adhering to the infrared- and ultraviolet-blocking glass. Self-cleaning executed automatically (taking about 1.8 sec.) when power is turned on or off. Manual execution also possible (taking about 5.2 sec.). Low-pass filter has a fluorine coating.

2. Dust Delete Data acquisition and appending - The coordinates of the dust adhering to the infrared- and ultraviolet-blocking glass are detected by a test shot and appended to subsequent images. The dust coordinate data appended to the image is used by the provided software to automatically erase the dust spots.

3. Manual cleaning

Exposure Control

ISO Range
100-51,200 in 1/3-stop or whole-stop increments

ISO Expansion Range

- L: 50

- H1: 102,400

- H2: 204,800

Auto ISO: 100-51,200

Shutter Speed Range
1/8000 to 1/30 sec., bulb, X-sync at 1/250 sec.

Shutter speed's control range can be set with a Custom Function.

Exposure Modes
Program AE (shiftable), Shutter-priority AE (Safety shift possible), Aperture-priority AE (Safety shift possible), Manual exposure, Bulb, E-TTL II autoflash program AE

Metering Modes
252-zone metering with approx. 100,000-pixel RGB AE sensor and TTL maximum aperture metering employed.

EOS iSA (Intelligent Subject Analysis) system employed.

Evaluative metering (linked to all AF points)

Partial metering (center, approx. 6.5% of viewfinder)

Spot metering (center, approx. 2.5% of viewfinder)

- Center spot metering

- AF point-linked spot metering (Custom Function)

- Multi-spot metering

Up to eight multi-spot meter readings can be taken.

Center-weighted average metering

Metering Range
EV 0-20 (at 73°F / 23°C with 50mm f/1.4 lens at ISO 100)

Exposure Compensation
Manual: ±5 stops in 1/3- or 1/2-stop increments

AEB: ±3 stops in 1/3- or 1/2-stop increments

Automatic Image Correction
Peripheral Illumination Correction

Chromatic Aberration Correction

Highlight Tone Priority

Auto Lighting Optimizer

Color Control

White Balance Modes
Auto (AWB)

Preset (Daylight, Shade, Cloudy, Twilight, Sunset Tungsten, White fluorescent, Flash)

Custom (Custom WB)

Color Temperature (Approx. 2,500-10,000 Kelvin)

Personal WB settings PC-1 - PC-5 (up to five white balance data that you set yourself with the provided software.)

White Balance Compensation
Alter white balance in amber-blue direction, and/or magenta-green direction ±9 levels

White Balance Bracketing
Alter white balance in amber-blue direction or magenta-green direction, ±3 levels in single-level increments

Picture Styles
Auto, Standard, Portrait, Landscape, Neutral, Faithful, Monochrome, User Defined 1-3

Flash

Compatible Flashes
Canon EX-Series Speedlites (Manual flash only with non EX-Speedlites)

E-TTL II
Yes

FE Microadjustment
Available

Flash Exposure Lock
Available

Flash Exposure Compensation
±3 stops in 1/3-stop or 1/2-stop increments

PC Socket
Not Provided

Viewfinder

Display
Intelligent Viewfinder uses a transparent LCD for superimposed display of the following:

AF Information

- AF Points

- AF Confirmation

- AF Status Indicator

Exposure information

- Metering mode

- shooting mode

- AE lock

- Shutter speed

- Aperture

- Exposure compensation

- ISO speed (always displayed)

- Exposure level

- Exposure warning

Flash information

- Flash ready

- High-speed sync

- FE lock

- Flash exposure compensation

Image information

Battery check

Composition information

- Grid, electronic level

Coverage
100%

Eyepoint
Approx. 20mm

Magnification
0.76x

Focusing Screen
Interchangeable

Diopter
-3 ~ +1.0 (user-adjustable)

Live View

Type
Electronic viewfinder with image sensor

Autofocus
Live mode (Contrast based)

Face Detection Live mode (Contrast based)

Quick mode (Phase based)

Live View Features
Magnified view, 3 Grid types, Correct Exposure/Exposure Simulation Display activated through Menu (Aspect Ratio indicator not provided.)

Multiple Exposures

Exposures
2 to 9

Type
Additive, Average, Bright, Dark

Shutter Durability

Shutter Durability
400,000 Cycles

Copyright and Camera Information

Copyright Capability
The copyright information set with the camera is appended to the image as part of the Exif information

Camera System Information
Basic information:

- Serial No.

- Firmware version

- Shutter-release cycles

Camera status log:

- Error log

- Caution log

Interface

Video Output
HDMI mini OUT terminal (Type C), CEC compatible

Audio (stereo)/video (NTSC/PAL selectable) OUT terminal

External Microphone IN Terminal
3.5mm diameter stereo mini-jack

Headphone Terminal
Provided

PC Terminal
Not provided

Digital Terminal
For personal computer communications, direct printing (Hi-Speed USB)

Audio (stereo)/video (NTSC/PAL) output

Connects to GPS Receiver GP-E2 (Non-dedicated GPS)

Remote Control Terminal
N3-type terminal

Wireless Remote Control
Enabled with Wireless Controller LC-5

System extension terminal
For Wireless Transmitter WFT-E6A and GPS Receiver GP-E1

Ethernet terminal
RJ-45 jack (for gigabit Ethernet)

Power Supply

Battery
LP-E4 or LP-E4N Lithium-Ion battery pack

- With the AC Adapter Kit ACK-E4, AC power is possible.

Battery Life
With a fully charged LP-E4N Battery Pack:

Approx. 2 hr. 10 min. (at 73°F/23°C)

Approx. 2 hr. (at 32°F/0°C)

Battery Information
The power source type, remaining capacity (in 1% increments + 6-level battery check), shutter count, and recharge performance can be checked.

The battery registration and operation history (serial number, remaining battery level when removed, and date) cannot be checked.

Battery rechargeable regardless of remaining capacity.

Body

Exterior Material
Magnesium alloy

Weight (without eye-cup)
Approx. 54.5 oz./1545g (CIPA Standard)

Approx. TBA oz./TBA g (Body only*)

* with date/time function battery

Weather Sealing
Dust and water resistant

Dimensions, W x H x D
6.2 x 6.4 x 3.3 in. (158 x 163.6 x 82.7mm)

Free Shipping *Most purchases over $75
Go to Top of Page
